Unmatched Strength Uncompromising Safety
Intelligent Hoist IH1 Kinex
UNITECH LIGHTING

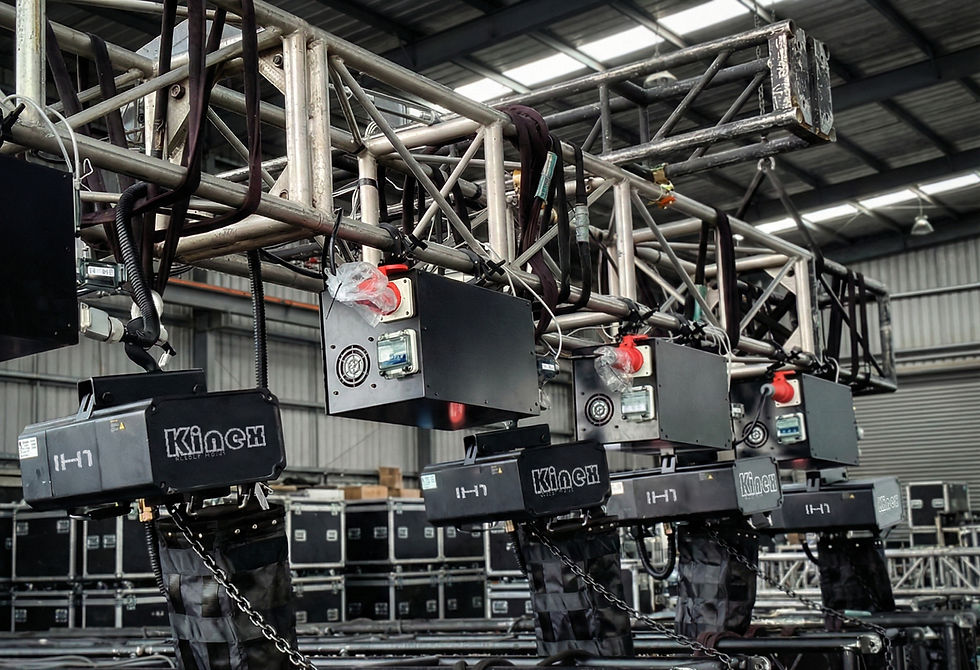

Kinex IH1 Intelligent Series: The Future of Dynamic Stage Motion
Unleash the full potential of your stage productions with the Kinex IH1, a revolutionary electric chain hoist engineered for performance, precision, and safety. Designed specifically for the demanding world of entertainment, the IH1 is rated for holding and moving loads directly above people, giving you the confidence to create breathtaking effects without compromise.
Why the Kinex IH1 is the Ultimate Choice for Professionals:
-
Intelligent Synchronization & Power: Powered by advanced Servo Motors and Absolute Encoders, the IH1 offers a high-power reserve that guarantees excellent synchronization during group movements. Whether you are coordinating complex scenic changes or moving arrays, the motion is fluid, precise, and perfectly timed.
-
High-Speed Dynamics: Elevate your show's energy with lifting speeds of up to 28 m/min. The IH1 provides the dynamic range necessary for fast-paced sequencing, allowing for rapid transitions that keep the audience engaged.
-
Whisper-Quiet Operation: Silence is crucial in theater. The IH1 features two ultra-quiet brakes on the gear shaft, maintaining a noise level of just 50 dB(A). This ensures that the only thing your audience hears is the performance, not the machinery.
-
Uncompromising Safety: Safety is built into every component. The unit comes standard with an Embedded Load Cell for real-time overload protection and double brakes to secure loads safely above cast and crew. The robust design is also IP66 rated, protecting your investment against dust and water in any environment.
-
Total Control & Flexibility: Unlock creative freedom with versatile control options. The IH1 supports Laptop Control and is DMX available, integrating seamlessly into your existing lighting and automation workflows. Its modular design allows for easy implementation of path and load measurement directly on the motor shaft.
Experience the difference of true intelligent motion. Choose Kinex IH1.
EASY
INSTALL
EASY
CONNECTION
SMART
CONTROL
PERFECT SHOW
Gallery
Video
video
Specifications
SPECIFICATIONS
-
Load Capacity: Available in 200kg, 500kg, and 1000kg models.
-
Lifting Speed: Standard models: 16 m/min or 12 m/min.
-
Options: 8 m/min or high speed up to 28 m/min.
-
Motor Power: 1.5 kW (for 200/500kg) or 3 kW (for 500/1000kg).
-
Key Components: Servo Motors, Absolute Encoder, and 1x Embedded Load Cell.
-
Chain: FEC Chain Made in Japan.
-
Sizes: 7.1 x 21.3mm (for 200-500kg) or 8 x 24mm (for 1000kg).
-
Noise Level: 50 dB(A) at 1 meter distance.
-
Braking System: 2x ultra-quiet brakes on the gear shaft.
-
Protection Rating: IP66.
-
Control: Laptop control and DMX available.
Accessories
Loadcell Monitoring
Grillo with 3.25 t - 4.75 t capacity
±0.1°/o accuracy
Safety factor of 5:1
Free of charge software
Smart sleep protects battery lite
High quality black finish
Robust and compact high-strength steel
Monitoring software up to 100 units
IP67 protected to withstand challenging environments
2.4 GHz wireless transmission
Repeater module available to enhance signal
Tablet or smart phone access via webserver feature
We produce high-performance Load Cell Monitoring, paired with our company's D8+Electric Holist, to previde you with a safe and reliable lifting solution. We can produce both wired and wireless load cell monitoring, and we can ensure that the load cell monitoring is built into the electric hoist, too.
The load cell monitoring-based weighing management system is important for stage equipment hoisting projects
Rac Controller Box
DV Controllers & LV Controllers Wide range of wireless and wired controllers with various functions such as group stop, link and phase align.
Load Monitori ng System that monitors the load on hoist and prevents them from dangers.
Touring Rigging Systems Complete rigging plug-and play linkable systems on wheels ideal for touring.
Rigging Accessories Link cables, split boxes, Various spare parts and additional components.
