Vibrant Washes, Pixel-Mapping Power, All-Weather Reliability

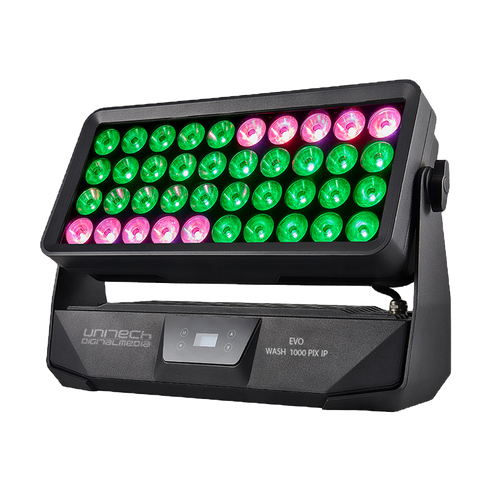

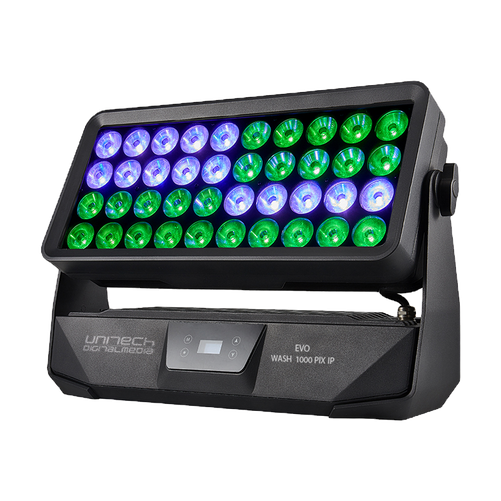

When your design requires immense wash coverage and eye-catching visual effects that can withstand the elements, the EVO WASH 1000 IP PIX delivers. This powerhouse

IP65-rated wash light is built for extreme output and creative flexibility in any environment. Its grid of 40 high-power LEDs can act as a single, potent wash or as a matrix of 40 individual pixels, unlocking endless possibilities for color, motion, and graphic effects.





🎨 MASSIVE OUTPUT & VIVID COLORS




• Light Source: 40 x 25W RGBW LEDs for a potent, vibrant mix.

• Total LED Power: A staggering 1000W of raw LED power ensures brilliant color saturation and blinding brightness, even over long distances.

• Exceptional Longevity: 50,000-hour life expectancy for years of reliable performance without replacement.

• Power Consumption: Efficient operation at just 600W (@220V).






✨ OPTICS & DYNAMIC EFFECTS



• Versatile Beam Angles: Choose from 25∘, 45∘, or 60∘ beam angles to perfectly suit your application, from focused color punches to broad stage washes.

• Pixel-Mapping Ready: Each of the 40 LEDs can be controlled individually, turning the fixture into a dynamic canvas for video content, graphic patterns, and stunning visual sequences.

• High-Speed Strobe: A powerful electric strobe with adjustable speed from 0.3 to 20 flashes per second.

• Smooth Dimming: Flawless 0-100% linear dimming for seamless fades and color transitions.







🎛️ CONTROL & CONNECTIVITY



• Professional Protocols: Full integration with industry-standard control systems via DMX512 and RDM.

• DMX Modes: 3 distinct channel modes allow for flexibility between simple control and full pixel-level programming.

•

  Standalone Operation: Includes Master-slave and stand-alone modes for simple setups without a dedicated controller.

•

  Wireless Freedom: An optional 2.4 GHz W-DMX™ module is available for cable-free operation.






🛡️ BUILT FOR ANY ENVIRONMENT




• Fully Weatherproof: The IP65-rated sealed housing ensures complete protection against rain, dust, and humidity, making it perfect for outdoor festivals, architectural installations, and tours.

• Robust & Manageable: Despite its power, it maintains a reasonable profile for easy rigging.

• Weight: 14.8 Kg |

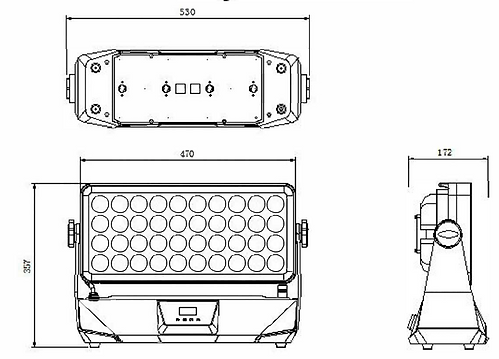

  Size: 530 x 172 x 357 mm.




  🔥 WHY CHOOSE EVO WASH 1000 IP?


       FEATURES                          EVO WASH 1000 IP                                  Typical IP Led Wash


• 🎨 Pixel Effects                                ✔  Full pixel control over 40 zones               ✘ Basic single-color output only

• 🔋 LED Power                                  ✔  1000W (40x25W)                                          ✘  Often lower power 10W-15W LED

• ⏱️ Lifespan                                       ✔ 50,000 hours                                                 ✘ Standard 20,000-30,000 H

• 💧 IP65 on All Connectors             ✔ Full protection                                             ✘  IP20 indoor only



                                  PERFECT FOR:


• 🎵 Live concerts, touring rigs, and music festivals

• 🎭 Theatrical stages, TV studios, and broadcast lighting

• 🏛️ Architectural lighting & public art installations

• 🎡 Theme parks and multimedia events

• 🌦️ Any outdoor event needing powerful IP65 fixtures with precision control
