EVO BFSW IP: The Ultimate IP65 LED Profile Moving Head – Power, Precision, and All-Weather Creativity

​

When your production demands uncompromising power, optical precision, and all-weather reliability, the EVO BFSW IP delivers. This next-generation, IP65-rated moving head fixture is engineered to dominate any stage, indoors or out. From razor-sharp aerial beams to flawless gobo projections, the EVO BFSW IP combines an intelligent framing system, full CMY color mixing, and a dynamic FX suite—all housed in a rugged, tour-ready chassis.

​

​​

💡 EXCEPTIONAL OUTPUT FOR ANY VENUE


Powered by a high-efficiency 800W LED engine, the EVO BFSW IP produces a stunning luminous flux, making it the ideal workhorse for stadiums, arenas, and large-scale festivals. Its crisp, clean white light ensures perfect on-camera performance and powerful visual impact.


• LED Power Source: 800W High-Efficiency Engine.

• Total Luminous Flux: 52,500 lumens for unprecedented visual impact.

• Color Temperature: 7,000K for a bright, neutral white ideal for broadcast and live events.

• LED Lifetime: 20,000 hours, ensuring long-term reliability and return on investment.
  ​

🎨 ADVANCED COLOR ENGINE FOR LIMITLESS CREATIVITY

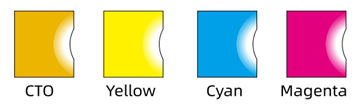

Explore a universe of color. The linear CMY system provides seamless transitions across an infinite color palette, while the variable CTO allows you to perfectly match any lighting environment, from warm tungsten to cool daylight.


• Color Mixing: Linear CMY for an endless spectrum of color.

• Linear CTO: 2,700K to 7,000K color temperature correction.

• Color Wheel: 6 dichroic colors + CTB + open for instant, punchy color changes.

• Dual CRI Modes:

  • High CRI Mode (Ra ≥ 90): Essential for theatre, broadcast, and fashion, where color fidelity is paramount.

  • Standard Mode (Ra > 70): Maximizes brightness for high-impact live touring and events.



🔀 PRECISION OPTICS: FROM RAZOR-SHARP BEAM TO                    WIDE WASH


The incredible zoom range allows you to shift instantly from a tight 4.5° aerial beam to a wide, even 50° wash. The large 145mm front lens ensures high-contrast gobo projections and powerful mid-air effects with maximum efficiency.


• Zoom Range: 4.5°–50°, offering true beam, spot, and wash versatility in one fixture.

• Front Lens: Ø145 mm, optimized for sharp projections and high output.

• Electronic Dimming: Ultra-smooth 0–100% dimming with flicker-free performance.



✨ CREATIVE FX ENGINE: YOUR ONBOARD ARSENAL


The EVO BFSW IP is a creative powerhouse. Layer and combine framing, gobos, animation, and prisms to build complex textures and breathtaking aerial dynamics.


• Framing System: 4-blade system with full curtain effect and continuous module rotation (±60°) for precise beam control at any angle.

• Rotating Gobo Wheel: 8 interchangeable glass gobos + open for dynamic projections.

• Static Gobo Wheel: 13 gobos + open for aerials, texturing, and morphing effects.

• Animation Wheel: Bi-directional rotation to create realistic water, fire, and cloud FX.

• Dual Prism: A 4-facet prism and a 4-mirror effect, both indexable and stackable to multiply visual impact.

• Frost Filters: Dual flags (Light and Medium) to soften edges and create beautiful wash looks.


🛡️ BUILT FOR THE ROAD: IP65 RATING & TOTAL                                  CONNECTIVITY


Engineered to endure. The fully sealed chassis protects all internal components from dust, rain, and humidity, providing peace of mind for festivals, architectural installations, and theme parks.


• Protection Rating: IP65 for safe, reliable use in any weather conditions.

• Control Protocols: Full integration with DMX512, RDM, Art-Net, and sACN.

• DMX Modes: 3 modes (23 / 32 / 42 channels) to fit any control setup.

• Connectors: IP65-rated 3/5-pin DMX and RJ45 connections for robust connectivity.

• Dimensions & Weight: 372.9 × 239.8 × 672 mm | 29 kg.

​


🔥 WHY CHOOSE EVO BFSW IP?

 FEATURES                               EVO BFSW IP                                          Typical IP LED Profile


• 🔋 Led Source                                  ✔  52,500 lm from 800W LED                        ✘ Often under 40,000 lm

• 🎭 Colors                                           ✔  Full CMY + CTO + CRI modes                    ✘  Limited or fixed color temp

• 🎨 FX Effects                                    ✔ Animation + Framing +                               ✘ One or two FX systems

• 💧 IP65 on All Connectors             ✔ Full protection                                             ✘  IP20 indoor only

• 🎥 Lens rotation                              ✔ Infinite lens rotation for motion FX         ✘ Fixed framing only

• 🔬 Zoom                                            ✔ 4.5° tight beam + 50° wide zoom             ✘ Limited zoom range
  ​


  THE PERFECT FIT FOR ANY PROFESSIONAL APPLICATION:

  The EVO BFSW IP is the definitive lighting tool for lighting designers, rental houses, and production companies seeking a versatile, powerful, and supremely reliable fixture.


• 🎵 Live concerts, touring rigs, and music festivals

• 🎭 Theatrical stages, TV studios, and broadcast lighting

• 🏛️ Architectural lighting & public art installations

• 🎡 Theme parks and multimedia events

• 🌦️ Any outdoor event needing powerful IP65 fixtures with precision control
